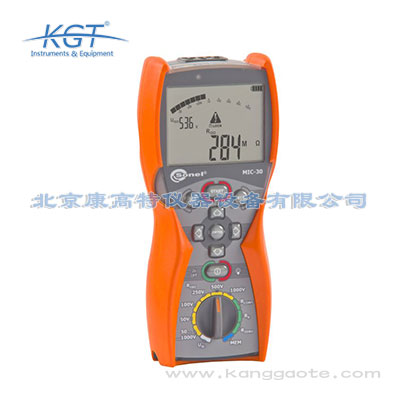

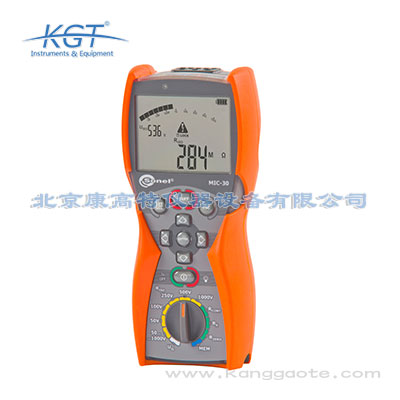

MIC-30絕緣電阻測試儀

品牌：波蘭SONEL(索耐)
分類：絕緣電阻測試儀
應用領域：
測試對象：
國際標準：
國家標準：

聯系方式：010-68460051
Tel：13520131150

立即詢價

MIC-30絕緣電阻測試儀簡介：
Insulation resistance measurement:
?selected test voltage: any voltage in the 50...1000 V range with 10 V step,
?automatic measurement in sockets with the UNI-Schuko adapter with possibility of configuring pairs of measured cables,
?continuous indication of insulation resistance or leakage current,
?automatic discharge of capacitance of tested object after the insulation resistance measurement,
?acoustic signalling of five-second periods to facilitate obtaining time characteristics,
?measured test times T1, T2 i T3 to measure one or two absorption coefficients in the 1... 600 sec. range,
?indication of actual test voltage during the measurement,
?protection against measuring live objects,
?three-lead measurement.
?Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current

Low-voltage circuit continuity and resistance measurement:
?circuit resistance measurement (<1999 Ω ) with the <15 mA current,
?quick sound signal if circuit resistance is below 30Ω.

Leakage current measurement.
?Capacitance measurement during the RISO measurement
?Measurement of alternating and direct voltages in the 0...600 V range.
?990 memory cells and wireless data transmission to a computer using the USB - OR-1 adapted.
?Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
?Meters conform to EN 61557.
